Terms of payment: pay 30% for deposit by T/T before arrange manufacture, the balance paid before shipment by T/T.
Skype
E-mail Us
PDF Download
Video Link
Main technical parameters:
|
Model |
BL1020B-AR300 |
|
Producing length |
400-1500mm |
|
Producing width |
900mm |
|
Rewinding width |
300mm |
|
Max.Producing speed |
100m/min |
|
Total power |
11kw |
|
Film of thickness |
0.01-0.08mm |
|
Max. dia. For one roll bag |
150mm |
|
Max. unwinding dia. |
700mm |
|
Weight |
2400kgs |
|
Overall size |
7250x2000x2300mm |
Machine Price:
|
Machine Name |
Qty |
Unit Price FOB Ningbo |
|

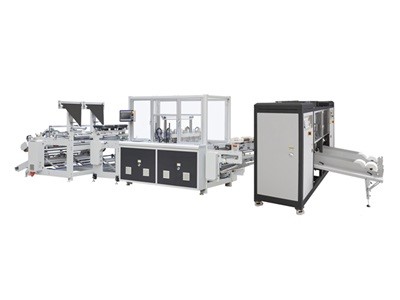

BL1020B-AR300 C FOLD ROLL BAG MAKING MACHINE |
1 SET |
25500.00USD |
|
Total Amount |
25500.00USD |
|
Main allocation:
|
ITEM |
BRAND |
DETAILS |
QTY |
|
Main Controller |
Risheng |
MCT-III |
1PC |
|
Rewinding Controller |
Xinje |
XC3-42 |
1PC |
|
Touch Screen |
MCSG Main Motor Rewinder |
7” 7” |
1PC 1PC |
|
Servo System |
Fuji Servo Length Fix Motor Folding Motor |
3.0KW 3.0KW |
1PC 1PC |
|
Main Machine Inverter |
Delta Inverter Ms Series |
1.5KW |
1PC |
|
Unwinding Motor |
Delta Inverter Ms Series |
0.75KW |
1PC |
|
Feeder Motor |
Delta Inverter Ms Series |
0.75KW |
1PC |
|
Outer Receive Motor |
Delta Inverter Ms Series |
0.75KW |
1PC |
|
Rewinding Motor |
Delta Inverter Ms Series |
0.75KW |
2PCS |
|
Folding Online |
Double C Folding |
|
1SET |
|
Photocell |
SICK |
KTS |
1PC |
|
Static System |
|
|
2SET |
|
Electric Part and Switch |
SCHNEIDER |
|
|
|
Temperature Controller |
OMRON |
|
2PCS |
|
Sensor |
LEUZE |
|
12PCS |
|
Displacement Sensor |
TURCK |
|
2PCS |
|
EPC System |
|
|
1PC |
1. Terms of payment: pay 30% for deposit by T/T before arrange manufacture, the balance paid before shipment by T/T.
2.Delivery time: 45days after received the 30% down payment.
3. Packaging: Wooden TRAY or without package, according the machine loading.
4. Debugging: The sellers don’t provide the debugging. We will supply the video.(If need the debugging, the buyer should pay for the worker, also the air ticket and hotel)
5.Document:B/L,packing list, invoice,CO.
6. Guarantee: 1 year. First year maintain the main electric part free, but the buyer will charge for express fees. From second year, the buyer will change maintain fees and express fees.
7.value day: 60 days
