BS 1020/1220l
无拉力制袋机

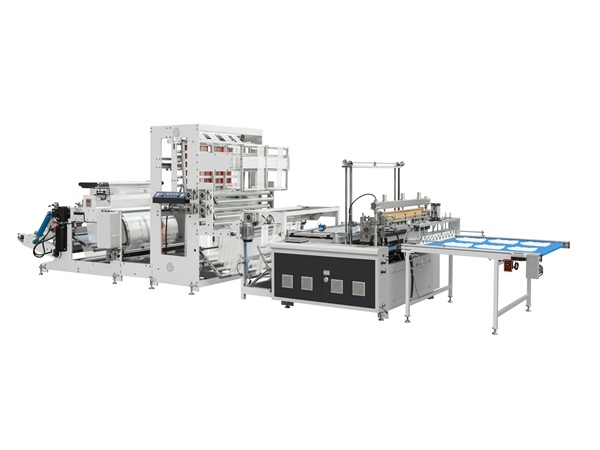

Free Tension Bag Making Machine
本公司可能对机器参数进行修改，恕不另行通知。
型号
Model
BS1020L
BS 1220L
电压
Voltage
380V3P
380V3P
总功率
Total Power
14KW
15KW
膜厚度
Film Thickness (total)
20-400mic
20-400mic
放料轴宽度
Unwinding Roll Width
1400mm
1600mm
放料直径
Unwinding Roll Diameter
1000mm
1000mm
制袋宽度
Bag Making Width
100-960mm for one line
100-1160mm for one line
100-240mm for 4 lines
100-280mm for 4 lines
制袋长度
Bag Making Length
200-1500mm
200-1500mm
制袋速度
Bag Making Speed
20-140p/min
20-140p/min
重量
Machine Weight
3000KG
3300KG
机器尺寸
Overall Size
7000x1900x2300mm
7000x2100x2500mm
BaiHao Machinery Co., Ltd. may modify the technical parameters without further notice.
